115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor

    Buy cheap 115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor from wholesalers

    Buy cheap 115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor from wholesalers
    • Buy cheap 115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor from wholesalers
    • Buy cheap 115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor from wholesalers
    • Buy cheap 115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor from wholesalers
    • Buy cheap 115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor from wholesalers
    • Buy cheap 115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor from wholesalers
    • Buy cheap 115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor from wholesalers

    115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor

    Ask Lasest Price
    Brand Name : Anbox
    Model Number : 115A-1
    Certification : CE
    Price : $2~$4
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000pcs/day
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor


    115x90x55mm electronics waterpoof plastic enclosure boxes for outdoor


    Features:


    1. Designed to IP65 of IEC60529.
    2. Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
    3. Captive steel screws thread into brass inserts for cover on/cover off applications
    4. Plastic PCB mounting bosses are standard
    5. Durable, high impact ABS, PC raw material
    6. The Min.average wall thickness is 3mm
    7. Gray cover and transparent cover are available
    8. Flange type is available
    9. Assembly includes base, gasket, cover, and 4 steel enclosure screws
    10. Custom requirements are available.
    11. Accept OEM order as per your design.

    Specifications:


    Model No.115A-1
    External Size115*90*55mm
    Net weight150g
    Protection LevelIP65
    MaterialABS, PC, Flame retardant, UV stabilized
    Flame ratingUL 94-HB, UL94-V2, UL94-V0, UL94-5VA
    Temperature Range-20°C~80°C(ABS), -40°C~100°C (PC)
    Impact resistantIK07(ABS), IK08(PC)

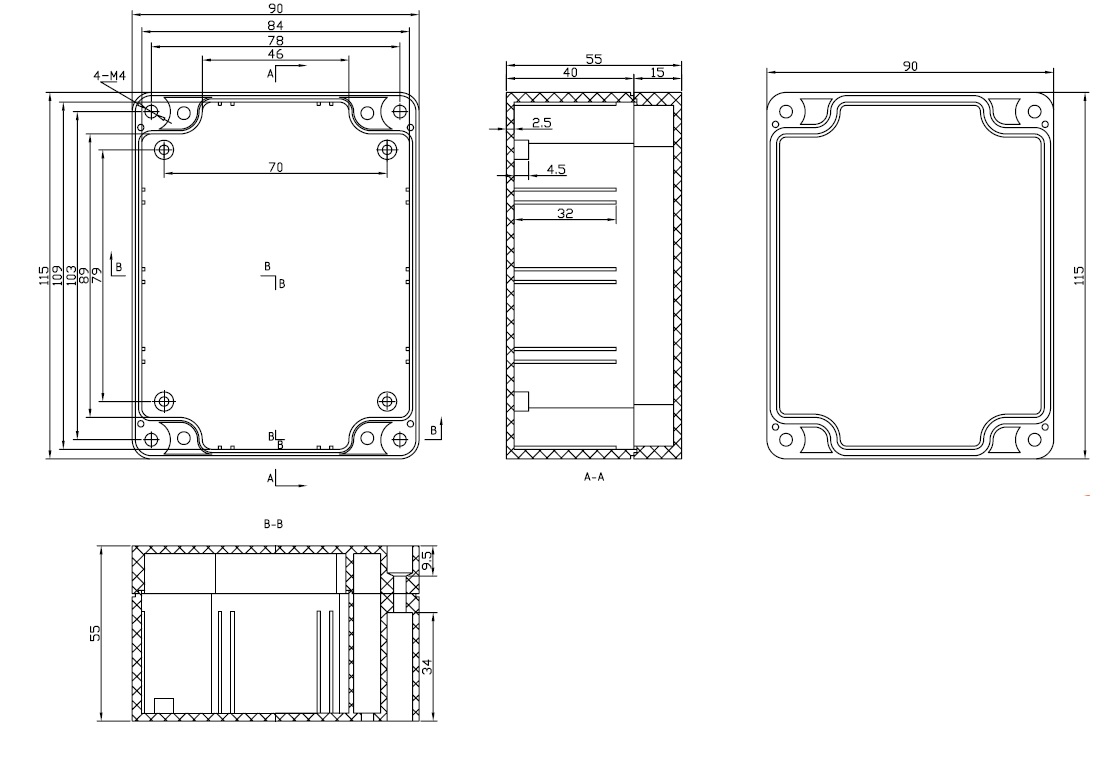

    Drawing reference

    ( the measurement might have tolerence)



    Other sizes

    P.NModel No.Dimension
    163A-163*58*35
    265A-165*50*55
    383A-183*58*33
    483B-183*81*56
    595A-195*65*55
    696A-196*96*60
    7100A-1100*68*50
    8100B-1100*100*50
    9100C-1100*100*75
    10100D-1100*100*90
    11110A-1110*80*45
    12110B-1110*80*70
    13110C-1110*80*85
    14115A-1115*90*55
    15120A-1120*120*90
    16125A-1125*85*60
    17125B-1125*125*75
    18125C-1125*125*100
    19130A-1130*80*70
    20130B-1130*80*85
    21135A-1135*80*90
    22140A-1140*105*45
    23140B-1140*105*63
    24145A-1145*102*31
    25145B-1145*145*60
    26145C-1145*145*90
    27150A-1150*150*120
    28155A-1155*115*75
    29158A-1158*90*40
    30158B-1158*90*60
    31158C-1158*90*75
    32160A-1160*45*55
    33160B-1160*80*55
    34160D-1160*110*90
    35160F-1160*160*60
    36160E-1160*160*90
    37160C-1160*160*120
    38170C-1170*120*21
    39170A-1170*120*100
    40170B-1170*140*95
    41175A-1175*125*75
    42175B-1175*125*100
    43175C-1175*175*100
    44180A-1180*80*70
    45180B-1180*80*85
    46180C-1180*130*60
    47180D-1180*130*90
    48190A-1190*140*70
    49192A-1192*188*100
    50194A-1194*80*56
    51200A-1200*120*56
    52200B-1200*120*75
    53200C-1200*120*90
    54200D-1200*120*113
    55200E-1200*150*100
    56200F-1200*150*130
    57200H-1200*200*95
    58200I-1200*200*130
    59210A-1210*120*110
    60210B-1210*155*65
    61210C-1210*155*94
    62210D-1210*155*112
    63230A-1230*150*60
    64230B-1230*150*85
    65235A-1235*165*45
    66240A-1240*160*90
    67240B-1240*160*120
    68240D-1240*175*68
    69240E-1240*175*117
    70240C-1240*190*90
    71248A-1248*77*85
    72248B-1248*148*100
    73250A-1250*80*70
    74250B-1250*80*85
    75250C-1250*150*100
    76250D-1250*150*130
    77250E-1250*170*120
    78250F-1250*190*99
    79263A-1263*182*60
    80263B-1263*182*95
    81263C-1263*182*125
    82280A-1280*190*130
    83280B-1280*190*180
    84280E-1280*195*86
    85280C-1280*195*135
    86280D-1280*280*130
    87280E-1280*280*180
    88290A-1290*200*130
    89290B-1290*210*60
    90290C-1290*210*100
    91295A-1295*155*56
    92295B-1295*155*96
    93295C-1295*155*112
    94300B-1300*200*125
    95300A-1300*280*140
    96320B-1320*240*60
    97320A-1320*240*110
    98320B-1320*240*140
    99320C-1320*240*155
    100340A-1340*270*60
    101340B-1340*280*130
    102340C-1340*280*180
    103380A-1380*190*130
    104380B-1380*190*180
    105380C-1380*260*105
    106380D-1380*260*120
    107380E-1380*260*140
    108380F-1380*280*130
    109380G-1380*280*180
