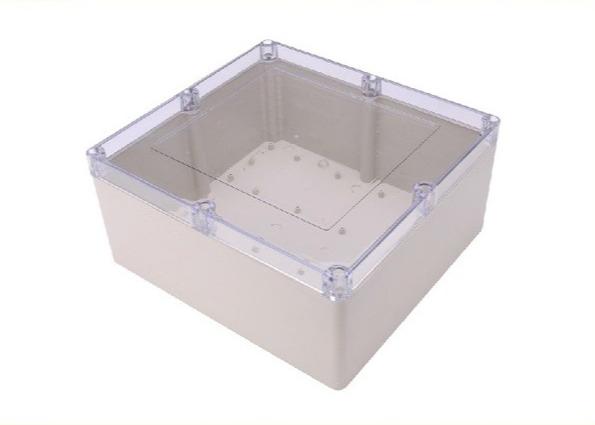

300*280*140mm Waterproof Clear Cover Plastic Electronic Project Box Enclosure case

Application
Clear Lid Enclosures suitable for indoor and outdoor electric,communication, fire fighting apparatus,iron and steel smelting ,petrochemical industry,electron,power system ,railway,building,mine,air and sea port,hotel ship,big workshops,dock unload equipment,waste water treatment equipment, environmental equipment and so on.
Characteristics
n Impact, heat, low temperature and chemical resistance ,excellent electrical performance and surface gross etc.
n Installation
Inside: There are installation holes in the base of circuit board or din rail (more than 2 pieces
of M4 standard brass nuts in each box)
Outside: The products can be directly fixed on the wall or other flat board with screws or
nails via the screw holes in the base.

Specifications

1, Model:300A-2

2, Material: ABS

3, Color: Gray with clear cover

4, Weatherproofing via user-fitted O-ring (supplied).

5, Dimensions (WxDxH)

• in: 11.81x11.02x5.51
• mm:300*280*140

6, Assembly screws included.

7, Multi-directional mounting feet

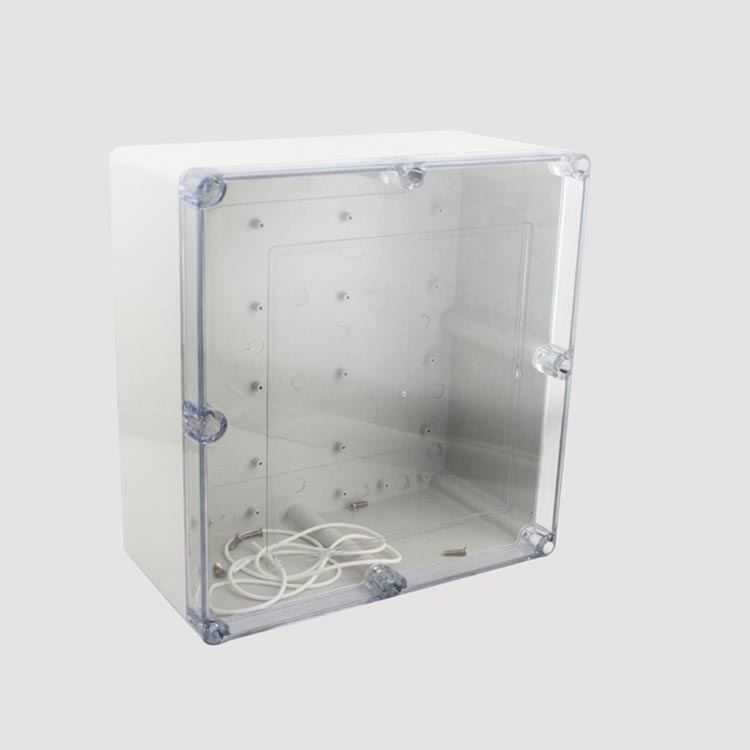

Detailed pictures

FAQ

1. Material and color can be customized.

2. Holes and pillars inside can be added or modified as per your request. And supporting our cable gland.

3. For modification, there will be surcharge.

4. Drawings from website is just for reference .

5. Making toolings will charge tooling cost.

6. For such waterproof case, we can produce 2 types, one with non-transparent case and another one with transparent lid case.

More sizes

AnBox Electric Co,. Ltd, specializing in design, production and sale various of equipment cases, waterproof boxes, aluminum enclosures, PCB housing, junction boxes, terminal boxes, custom enclosures. etc, our boxes are widely used in automotive, posts and telecommunications, communications, construction, electronic, coal, aerospace, defense, surveillance systems, medical equipment, instruments and meters, LED displays, cable TV ,etc.

AnBox Electric Co,. Ltd is devoting to providing the professional solutions for your electronics, from sample order, logo printing, modification, assembly, custom design, large production to shipping services.

Our waterproof enclosures offer both indoor and outdoor solutions for your watertight application. A variety of accessories are available for the waterproof enclosures, including internal plates, cable glands, and vents.
