280*190*130mm wholesale IP65 PCB Enclosure with clear lid waterproof case manufacturer

Specifications

1, Model:280A-2

2,Material: ABS

3, Color: Gray with clear cover

4, Weatherproofing via user-fitted O-ring (supplied).

5, Dimensions (WxDxH)

• in: 11.02x7.48x5.12
• mm: 280*190*130

6, Assembly screws included.

7, Multi-directional mounting feet

Application

Clear Lid Enclosures suitable for indoor and outdoor electric,communication, fire fighting apparatus,iron and steel smelting ,petrochemical industry,electron,power system ,railway,building,mine,air and sea port,hotel ship,big workshops,dock unload equipment,waste water treatment equipment, environmental equipment and so on.

Characteristics

n Impact, heat, low temperature and chemical resistance ,excellent electrical performance and surface gross etc.

n Installation

Inside: There are installation holes in the base of circuit board or din rail (more than 2 pieces

of M4 standard brass nuts in each box)

Outside: The products can be directly fixed on the wall or other flat board with screws or

nails via the screw holes in the base.

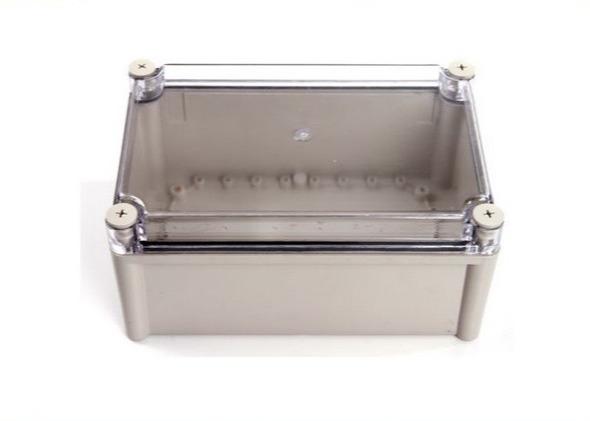

Detailed pictures

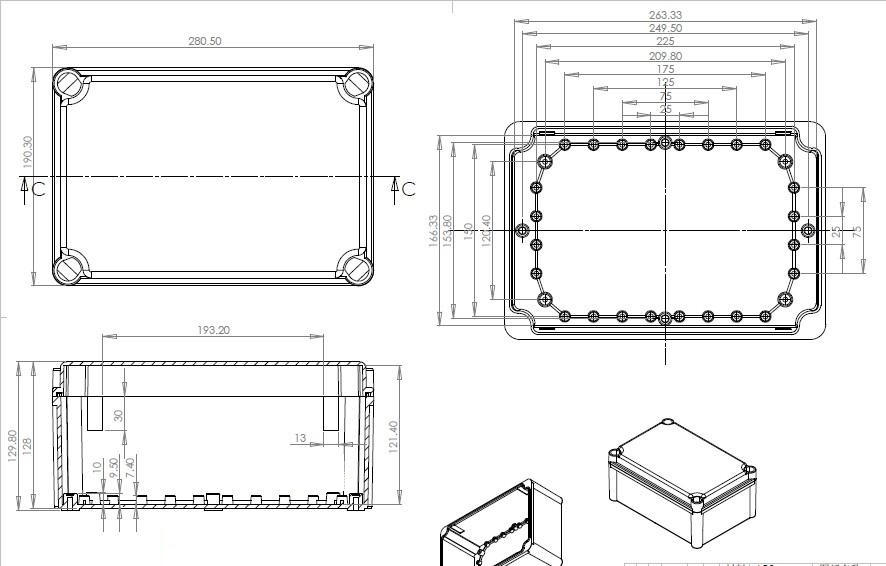

Reference drawing

AnBox Electric Co,. Ltd, specializing in design, production and sale various of equipment cases, waterproof boxes, aluminum enclosures, PCB housing, junction boxes, terminal boxes, custom enclosures. etc, our boxes are widely used in automotive, posts and telecommunications, communications, construction, electronic, coal, aerospace, defense, surveillance systems, medical equipment, instruments and meters, LED displays, cable TV ,etc.

AnBox Electric Co,. Ltd is devoting to providing the professional solutions for your electronics, from sample order, logo printing, modification, assembly, custom design, large production to shipping services.

Our waterproof enclosures offer both indoor and outdoor solutions for your watertight application. A variety of accessories are available for the waterproof enclosures, including internal plates, cable glands, and vents.
